| Product Details |
| Basic Info. |
|

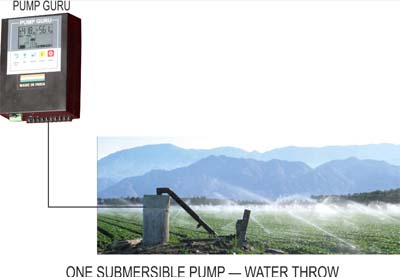

| Model NO : Submersible Throw |
Task : Program |
| Structure : Closed-Loop |
Mathematical Mode l : Linear |
| Signa l: Continuous |
Function : Automatic Control |
| Certification : CE |
Phase : Three Phase |
| Rated Input Voltage : AC380V |
Rated Frequency : 50Hz |
| Start Type : Dol |
Protection Grade : IP54 |
| Export Markets : Global |
|
| Product Description |
Main Spec :
Rated Input Voltage : AC380V/50HZ, Three Phase
Rated Output Power : 0.75kw-4kw (1hp-5.5hp)
5.5kw-11kw (7.5hp-15hp)
15kw (20hp)
Application : Control & Protect Three Phase Pump For Sewage Lifting / Drainage, DOL
Main Features :
Easy Operation, Easy Wiring
Easy Depth Value Setting For Dual Pumps Alternating, Switching and Backup
Present Level Transmitter (, Analog Signal)
Easy Installation, Save More Cost and Time For Installing Float Switch or Level Sensor
Dynamic Real Time Depth Displaying
Present One Dry Contacting Point
IP 54 Protection Grade
Present User Remote Monitor |
| |
|
|
|
|
|
