Two Tank- Two Pump with Booster |
|
| Product Details |
| Basic Info. |
|
| Model No : Two Tank Two Pump with Booster |
Starter Type : DOL / DDOL / Star Delta |
| Signal : Continuous |
Function : Auto & Manual |
| Certification : CE |
Phase : 3 Phase |
| Rated Input Voltage : AC 415V |
Rated Frequency : 50Hz |
| Origin : MADE IN INDIA |
|
| Product Description |
Ease of Operation, Ease of Wiring.
This is used for One Pump operation where all the parameters such as Voltage, Current, Auto/Manual, Water Tank Level & Error Alarms would be displayed with respect to that pump.
User can use LEVEL PROBES or FLOAT SWITCH to measure the level of the Bottom & Top Tanks.

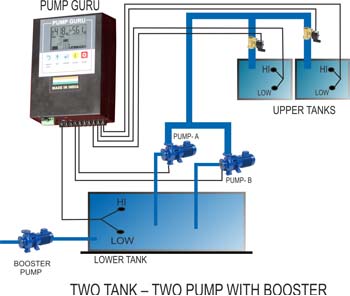

There are 2 Pumps which operate in Cyclic Mode for filling the Top Tanks thus utilizing the pumps with optimization.
Bottom Pump is connected with Booster pump for filling, whenever the pressure in the inlet pipe falls below the set value the booster pump will be switched ON in order to pump the water to the tank. Once the bottom tank has reached High level or the pressure in the inlet pipe has reached its set valuethe booster pump will be switched OFF.
Until both the top levels are High the pump would be filling & after it is high both the Solenoid valves would be closed & the pump would stop.
This helps in preventing repeated starts thus protecting the pump. If bottom tank level is High, then only it would fill the TOP Tank. |
| |
|
|
|
|
|
