Ease of Operation, Ease of Wiring.
This is used for One Pump operation where all the parameters such as Voltage, Current, Auto/Manual, Water Tank Level & Error Alarms would be displayed with respect to that pump.
User can use LEVEL PROBES or FLOAT SWITCH to measure the level of the Bottom & Top Tanks.

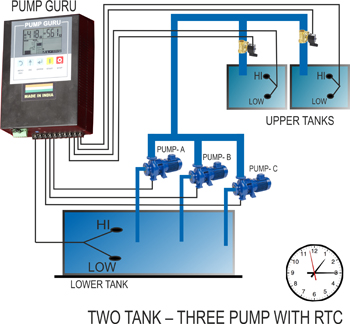

There are 3 Pumps which operate in Cyclic Mode for filling the Top Tanks thus utilizing the pumps with optimization.
RTC is used to start the pump at predefined time which normally happens when the bottom tank gets filled so at that moment simultaneously the top tank filling can also be started based on level.
Until both the top levels are High the pump would be filling & after it is high both the Solenoid valves would be closed & the pump would stop.
This helps in preventing repeated starts thus protecting the pump. If bottom tank level is High, then only it would fill the TOP Tank.
This is helpful to Farmers where they need to disperse water to farms at predefined time everyday. |
